_VDBL_hierarchicalview Class Reference
[Classes and types for internal use]

hierarchical view class More...

#include <vdbl_hrview.h>

Inheritance diagram for _VDBL_hierarchicalview:

Inheritance graph
[legend]

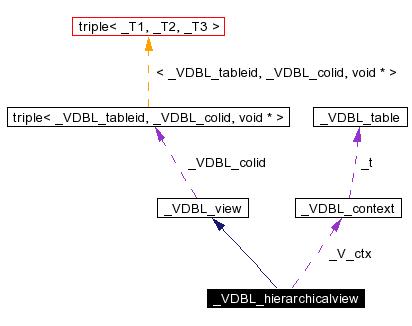

Collaboration diagram for _VDBL_hierarchicalview:

Collaboration graph
[legend]
List of all members.

Public Types

typedef std::pair< std::string,
_VDBL_col
_T_colspec

Public Methods

 _VDBL_hierarchicalview (const _VDBL_tableid &__ti, _VDBL_table *__t, const _VDBL_context &__c, _V_enum __en)
 _VDBL_hierarchicalview (const _VDBL_tableid &__ti, _VDBL_table *__t, const _VDBL_context &__c, _V_enum __en, const std::vector< _VDBL_rowid > &_rs)
 _VDBL_hierarchicalview (const _VDBL_hierarchicalview &__v)
virtual ~_VDBL_hierarchicalview ()
void push_table (const _VDBL_tableid &__ti, _VDBL_table *__t)
void push_table (const _VDBL_tableid &__ti, _VDBL_table *__t, const std::vector< _VDBL_rowid > &_rs)
_VDBL_tableid pop_table ()
const std::type_info & get_colinfo (const std::string &_C_n, triple< bool, _VDBL_colid, _VDBL_colflags > &_r) const
bool remove (std::pair< _VDBL_tableid, _VDBL_rowid > _r)
std::ostream & print_col (std::ostream &o, const std::pair< _VDBL_tableid, _VDBL_rowid > &_ri, const _VDBL_colid &_ci, bool &printed) const
template<class _R> bool get_raw_ptr (const std::pair< _VDBL_tableid, _VDBL_rowid > &_ri, const _VDBL_colid &_ci, _R const *&r) const
template<class _R> bool get (const std::pair< _VDBL_tableid, _VDBL_rowid > &_ri, const _VDBL_colid &_ci, _R &r) const

Protected Types

typedef _default_iterator<
_VDBL_col, const _VDBL_col &,
const _VDBL_col * >
default_const_iterator
typedef _col_iterator< _VDBL_col,
const _VDBL_col &, const
_VDBL_col * >
col_const_iterator
typedef _row_iterator< _VDBL_row,
const _VDBL_row &, const
_VDBL_row * >
row_const_iterator

Protected Methods

triple< _VDBL_tableid, _VDBL_colid,
void * >
_next_def_col (const _VDBL_tableid &_t, const _VDBL_colid &_c, void *_d) const
triple< _VDBL_tableid, _VDBL_colid,
void * >
_prev_def_col (const _VDBL_tableid &_t, const _VDBL_colid &_c, void *_d) const
void * _copy_def_data (void *_d) const
triple< _VDBL_tableid, _VDBL_colid,
void * >
_next_col (const _VDBL_tableid &_t, const _VDBL_rowid &_r, const _VDBL_colid &_c, void *_d) const
triple< _VDBL_tableid, _VDBL_colid,
void * >
_prev_col (const _VDBL_tableid &_t, const _VDBL_rowid &_r, const _VDBL_colid &_c, void *_d) const
void * _copy_col_data (void *_d) const
triple< _VDBL_tableid, _VDBL_rowid,
void * >
_next_row (const _VDBL_tableid &_t, const _VDBL_rowid &_r, void *_d) const
triple< _VDBL_tableid, _VDBL_rowid,
void * >
_prev_row (const _VDBL_tableid &_t, const _VDBL_rowid &_r, void *_d) const
void * _copy_row_data (void *_d) const
void made_change ()
 increment the change counter.

unsigned int get_change_ctr () const
 read the change counter


Protected Attributes

_V_rows _V_r
_V_cols _V_c
_V_colxref _V_cx

Detailed Description

This class implements a hierarchical view onto various tables.

Definition at line 48 of file vdbl_hrview.h.


Member Typedef Documentation

typedef std::pair<std::string,_VDBL_col> _VDBL_view::_T_colspec [inherited]


This is the description of one column

Definition at line 84 of file vdbl_view.h.

typedef _col_iterator<_VDBL_col, const _VDBL_col&, const _VDBL_col*> _VDBL_view::col_const_iterator [protected, inherited]


const iterator over all columns

Definition at line 461 of file vdbl_view.h.

typedef _default_iterator<_VDBL_col, const _VDBL_col&, const _VDBL_col*> _VDBL_view::default_const_iterator [protected, inherited]


const iterator over all default columns

Definition at line 324 of file vdbl_view.h.

typedef _row_iterator<_VDBL_row, const _VDBL_row&, const _VDBL_row*> _VDBL_view::row_const_iterator [protected, inherited]


const iterator over all rows

Definition at line 590 of file vdbl_view.h.


Constructor & Destructor Documentation

_VDBL_hierarchicalview::_VDBL_hierarchicalview const _VDBL_tableid   __ti,
_VDBL_table   __t,
const _VDBL_context   __c,
_V_enum    __en
[inline]


standard constructor which initalizes the table and the tableid of the master table, the evaluation context, and the view type.

Definition at line 341 of file vdbl_hrview.h.

_VDBL_hierarchicalview::_VDBL_hierarchicalview const _VDBL_tableid   __ti,
_VDBL_table   __t,
const _VDBL_context   __c,
_V_enum    __en,
const std::vector< _VDBL_rowid > &    _rs
[inline]


standard constructor which initalizes the table and the tableid of the master table, the evaluation context, and the view type. In addition the vector _rs contains a list of rows, which should be visible in this view.

Definition at line 368 of file vdbl_hrview.h.

_VDBL_hierarchicalview::_VDBL_hierarchicalview const _VDBL_hierarchicalview &    __v [inline]


copy constructor

Definition at line 394 of file vdbl_hrview.h.

virtual _VDBL_hierarchicalview::~_VDBL_hierarchicalview   [inline, virtual]


standard destructor

Definition at line 403 of file vdbl_hrview.h.


Member Function Documentation

void* _VDBL_hierarchicalview::_copy_col_data void *    _d const [inline, protected, virtual]


This virtual function has to be overloaded by the derived view classes, and it performs the step to the next row for a _row_iterator.

Reimplemented from _VDBL_view.

Definition at line 289 of file vdbl_hrview.h.

void* _VDBL_hierarchicalview::_copy_def_data void *    _d const [inline, protected, virtual]


This virtual function has to be overloaded by the derived view classes, and it performs the step to the next column for a _col_iterator.

Reimplemented from _VDBL_view.

Definition at line 232 of file vdbl_hrview.h.

void* _VDBL_hierarchicalview::_copy_row_data void *    _d const [inline, protected, virtual]


This is the fundamental class for iterators over all default columns, defining basic in(de)crementation for overloading, and basic comparison.

Reimplemented from _VDBL_view.

Definition at line 326 of file vdbl_hrview.h.

triple<_VDBL_tableid,_VDBL_colid,void*> _VDBL_hierarchicalview::_next_col const _VDBL_tableid   _t,
const _VDBL_rowid   _r,
const _VDBL_colid   _c,
void *    _d
const [inline, protected]


This virtual function has to be overloaded by the derived view classes, and it performs the step to the previous column for a _col_iterator.

Reimplemented from _VDBL_view.

Definition at line 237 of file vdbl_hrview.h.

triple<_VDBL_tableid,_VDBL_colid,void*> _VDBL_hierarchicalview::_next_def_col const _VDBL_tableid   _t,
const _VDBL_colid   _c,
void *    _d
const [inline, protected, virtual]


This virtual function has to be overloaded by the derived view classes, and it performs the step to the previous default of a column a _default_iterator.

Reimplemented from _VDBL_view.

Definition at line 180 of file vdbl_hrview.h.

triple<_VDBL_tableid,_VDBL_rowid,void*> _VDBL_hierarchicalview::_next_row const _VDBL_tableid   _t,
const _VDBL_rowid   _r,
void *    _d
const [inline, protected]


This virtual function has to be overloaded by the derived view classes, and it performs the step to the previous row for a _row_iterator.

Reimplemented from _VDBL_view.

Definition at line 294 of file vdbl_hrview.h.

triple<_VDBL_tableid,_VDBL_colid,void*> _VDBL_hierarchicalview::_prev_col const _VDBL_tableid   _t,
const _VDBL_rowid   _r,
const _VDBL_colid   _c,
void *    _d
const [inline, protected]


This function destroys the additional data needed by a _col_iterator

Reimplemented from _VDBL_view.

Definition at line 259 of file vdbl_hrview.h.

triple<_VDBL_tableid,_VDBL_colid,void*> _VDBL_hierarchicalview::_prev_def_col const _VDBL_tableid   _t,
const _VDBL_colid   _c,
void *    _d
const [inline, protected]


This function destroys the additional data needed by a _default_iterator

Reimplemented from _VDBL_view.

Definition at line 202 of file vdbl_hrview.h.

triple<_VDBL_tableid,_VDBL_rowid,void*> _VDBL_hierarchicalview::_prev_row const _VDBL_tableid   _t,
const _VDBL_rowid   _r,
void *    _d
const [inline, protected]


This function destroys the additional data needed by a _row_iterator

Reimplemented from _VDBL_view.

Definition at line 308 of file vdbl_hrview.h.

template<class _R>
bool _VDBL_hierarchicalview::get const std::pair< _VDBL_tableid, _VDBL_rowid > &    _ri,
const _VDBL_colid   _ci,
_R &    r
const [inline]


get the data from column _ci in row _ri.second of table _ri.first. The data stored in the column must be of type _R.

Definition at line 644 of file vdbl_hrview.h.

const std::type_info& _VDBL_hierarchicalview::get_colinfo const std::string &    _C_n,
triple< bool, _VDBL_colid, _VDBL_colflags > &    _r
const [inline, virtual]


return the type of this view

Reimplemented from _VDBL_view.

Definition at line 487 of file vdbl_hrview.h.

template<class _R>
bool _VDBL_hierarchicalview::get_raw_ptr const std::pair< _VDBL_tableid, _VDBL_rowid > &    _ri,
const _VDBL_colid   _ci,
_R const *&    r
const [inline]


get a const ptr to the data from column _ci in row _ri.second of table _ri.first. The data stored in the column must be of type _R. In this function no data copying is done. Note that this function returns a pointer to the columns raw data, so it can only be used to refer to constant columns.

Definition at line 625 of file vdbl_hrview.h.

_VDBL_tableid _VDBL_hierarchicalview::pop_table   [inline]


remove the topmost table from the view, and return its table id.

Definition at line 458 of file vdbl_hrview.h.

std::ostream& _VDBL_hierarchicalview::print_col std::ostream &    o,
const std::pair< _VDBL_tableid, _VDBL_rowid > &    _ri,
const _VDBL_colid   _ci,
bool &    printed
const [inline]


print the contents od column _ci in row _ri.second of table _ri.first.

Definition at line 599 of file vdbl_hrview.h.

void _VDBL_hierarchicalview::push_table const _VDBL_tableid   __ti,
_VDBL_table   __t,
const std::vector< _VDBL_rowid > &    _rs
[inline]


This pushes a new table onto the top of the hierarchical view stack. Additionally, a subset of the table's rows, which are visible in the view, can be specified.

Definition at line 433 of file vdbl_hrview.h.

void _VDBL_hierarchicalview::push_table const _VDBL_tableid   __ti,
_VDBL_table   __t
[inline]


This pushes a new table onto the top of the hierarchical view stack.

Definition at line 408 of file vdbl_hrview.h.

bool _VDBL_hierarchicalview::remove std::pair< _VDBL_tableid, _VDBL_rowid   _r [inline]


for now window views can only make changes in the top table in the list of tables

Definition at line 519 of file vdbl_hrview.h.


Member Data Documentation

_V_cols _VDBL_hierarchicalview::_V_c [protected]


This contains all columns of the view

Definition at line 89 of file vdbl_hrview.h.

_V_colxref _VDBL_hierarchicalview::_V_cx [protected]


This is the cross reference: view col id -> <tableid, real col id>

Definition at line 93 of file vdbl_hrview.h.

_V_rows _VDBL_hierarchicalview::_V_r [protected]


This contains all rows of the view

Definition at line 85 of file vdbl_hrview.h.


The documentation for this class was generated from the following file:
