_DG_base< _Tp, _Ctr, _Iterator, _Alloc > Class Template Reference
[Classes and types for internal use]

Directed graph base class for allocator encapsulation. More...

#include <vgtl_dagbase.h>

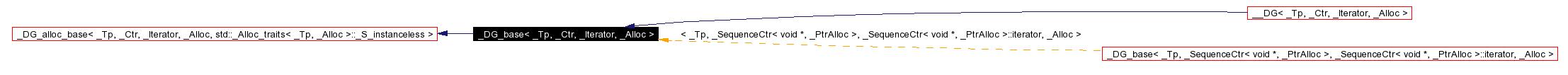

Inheritance diagram for _DG_base< _Tp, _Ctr, _Iterator, _Alloc >:

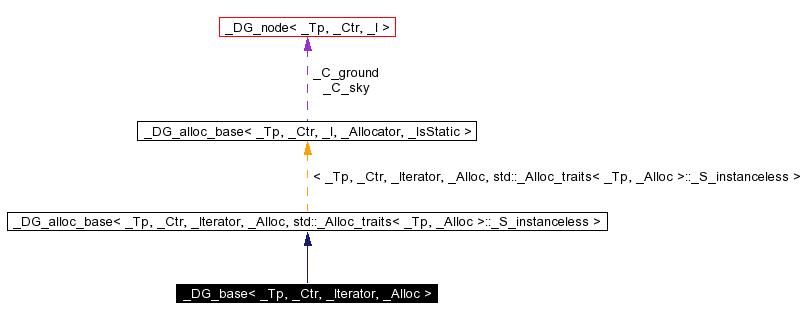

[legend]Collaboration diagram for _DG_base< _Tp, _Ctr, _Iterator, _Alloc >:

[legend]List of all members.

Public Types
typedef _Base::allocator_type	allocator_type
typedef _Ctr	container_type
typedef _Iterator	children_iterator
typedef _Iterator	parents_iterator
Public Methods
	_DG_base (const allocator_type &__a)
	~_DG_base ()
void	clear ()
void	clear_children ()
void	clear_parents ()
template<class _Output_Iterator> void	add_all_children (_Output_Iterator fi, _DG_node< _Tp, _Ctr, _Iterator > *_parent)
template<class _Output_Iterator> void	add_all_parents (_Output_Iterator fi, _DG_node< _Tp, _Ctr, _Iterator > *_child)
Protected Methods
void	clear_graph (_DG_node< _Tp, _Ctr, _Iterator > *_node)
_DG_node< _Tp, _Ctr, _Iterator > *	_C_get_node ()
void	_C_put_node (_DG_node< _Tp, _Ctr, _Iterator > *__p)
Protected Attributes
_DG_node< _Tp, _Ctr, _Iterator > *	_C_ground
_DG_node< _Tp, _Ctr, _Iterator > *	_C_sky
int	_C_mark

---

Detailed Description

template<class _Tp, class _Ctr, class _Iterator, class _Alloc>
class _DG_base< _Tp, _Ctr, _Iterator, _Alloc >

Base directed graph class top level that encapsulates details of allocators.

Definition at line 260 of file vgtl_dagbase.h.

---

Member Typedef Documentation

template<class _Tp, class _Ctr, class _Iterator, class _Alloc> typedef _Base::allocator_type _DG_base< _Tp, _Ctr, _Iterator, _Alloc >::allocator_type

allocator type Reimplemented from _DG_alloc_base< _Tp, _Ctr, _Iterator, _Alloc, std::_Alloc_traits< _Tp, _Alloc >::_S_instanceless >. Reimplemented in __DG< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >, dgraph< _Tp, _SequenceCtr, _PtrAlloc, _Alloc >, dag< _Tp, _SequenceCtr, _PtrAlloc, _Alloc >, and __DG< _Tp, _SequenceCtr< void *, _PtrAlloc >, _SequenceCtr< void *, _PtrAlloc >::iterator, _SequenceCtr< void *, _PtrAlloc >::iterator, _Alloc >. Definition at line 269 of file vgtl_dagbase.h.

template<class _Tp, class _Ctr, class _Iterator, class _Alloc> typedef _Iterator _DG_base< _Tp, _Ctr, _Iterator, _Alloc >::children_iterator

iterator for accessing the children Reimplemented in __DG< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >, dgraph< _Tp, _SequenceCtr, _PtrAlloc, _Alloc >, dag< _Tp, _SequenceCtr, _PtrAlloc, _Alloc >, and __DG< _Tp, _SequenceCtr< void *, _PtrAlloc >, _SequenceCtr< void *, _PtrAlloc >::iterator, _SequenceCtr< void *, _PtrAlloc >::iterator, _Alloc >. Definition at line 274 of file vgtl_dagbase.h.

template<class _Tp, class _Ctr, class _Iterator, class _Alloc> typedef _Ctr _DG_base< _Tp, _Ctr, _Iterator, _Alloc >::container_type

internal container used to store the children and parents Reimplemented in __DG< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >, and __DG< _Tp, _SequenceCtr< void *, _PtrAlloc >, _SequenceCtr< void *, _PtrAlloc >::iterator, _SequenceCtr< void *, _PtrAlloc >::iterator, _Alloc >. Definition at line 272 of file vgtl_dagbase.h.

template<class _Tp, class _Ctr, class _Iterator, class _Alloc> typedef _Iterator _DG_base< _Tp, _Ctr, _Iterator, _Alloc >::parents_iterator

iterator for accessing the parents Reimplemented in __DG< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >, dgraph< _Tp, _SequenceCtr, _PtrAlloc, _Alloc >, dag< _Tp, _SequenceCtr, _PtrAlloc, _Alloc >, and __DG< _Tp, _SequenceCtr< void *, _PtrAlloc >, _SequenceCtr< void *, _PtrAlloc >::iterator, _SequenceCtr< void *, _PtrAlloc >::iterator, _Alloc >. Definition at line 276 of file vgtl_dagbase.h.

---

Constructor & Destructor Documentation

template<class _Tp, class _Ctr, class _Iterator, class _Alloc> _DG_base< _Tp, _Ctr, _Iterator, _Alloc >::_DG_base (  const allocator_type &    __a )  [inline]

constructor initializing the allocator and the root Definition at line 280 of file vgtl_dagbase.h.

template<class _Tp, class _Ctr, class _Iterator, class _Alloc> _DG_base< _Tp, _Ctr, _Iterator, _Alloc >::~_DG_base (    )  [inline]

standard destructor Definition at line 300 of file vgtl_dagbase.h.

---

Member Function Documentation

_DG_node<_Tp,_Ctr,_Iterator>* _DG_alloc_base< _Tp, _Ctr, _Iterator, _Alloc, _IsStatic >::_C_get_node (    )  [inline, protected, inherited]

allocates the memory of one node Definition at line 194 of file vgtl_dagbase.h.

void _DG_alloc_base< _Tp, _Ctr, _Iterator, _Alloc, _IsStatic >::_C_put_node (  _DG_node< _Tp, _Ctr, _Iterator > *    __p )  [inline, protected, inherited]

de-allocates the memory of one node Definition at line 197 of file vgtl_dagbase.h.

template<class _Tp, class _Ctr, class _Iterator, class _Alloc> template<class _Output_Iterator> void _DG_base< _Tp, _Ctr, _Iterator, _Alloc >::add_all_children (  _Output_Iterator    fi, _DG_node< _Tp, _Ctr, _Iterator > *    _parent )  [inline]

add all children to the parent _parent. fi is a iterator to the children container of the parent Definition at line 459 of file vgtl_dagbase.h.

template<class _Tp, class _Ctr, class _Iterator, class _Alloc> template<class _Output_Iterator> void _DG_base< _Tp, _Ctr, _Iterator, _Alloc >::add_all_parents (  _Output_Iterator    fi, _DG_node< _Tp, _Ctr, _Iterator > *    _child )  [inline]

add all parents to the child _child. fi is a iterator to the container of the child Definition at line 466 of file vgtl_dagbase.h.

template<class _Tp, class _Ctr, class _Iterator, class _Alloc> void _DG_base< _Tp, _Ctr, _Iterator, _Alloc >::clear (    )

empty the tree Reimplemented in __DG< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >, dgraph< _Tp, _SequenceCtr, _PtrAlloc, _Alloc >, and __DG< _Tp, _SequenceCtr< void *, _PtrAlloc >, _SequenceCtr< void *, _PtrAlloc >::iterator, _SequenceCtr< void *, _PtrAlloc >::iterator, _Alloc >. Definition at line 472 of file vgtl_dagbase.h.

template<class _Tp, class _Ctr, class _Iterator, class _Alloc> void _DG_base< _Tp, _Ctr, _Iterator, _Alloc >::clear_children (    )  [inline]

clear all children of the ground node Definition at line 314 of file vgtl_dagbase.h.

template<class _Tp, class _Ctr, class _Iterator, class _Alloc> void _DG_base< _Tp, _Ctr, _Iterator, _Alloc >::clear_graph (  _DG_node< _Tp, _Ctr, _Iterator > *    _node )  [protected]

removes all the nodes of the graph except the sky and ground nodes Definition at line 430 of file vgtl_dagbase.h.

template<class _Tp, class _Ctr, class _Iterator, class _Alloc> void _DG_base< _Tp, _Ctr, _Iterator, _Alloc >::clear_parents (    )  [inline]

clear all parents of the sky node Definition at line 317 of file vgtl_dagbase.h.

---

Member Data Documentation

_DG_node<_Tp,_Ctr,_Iterator>* _DG_alloc_base< _Tp, _Ctr, _Iterator, _Alloc, _IsStatic >::_C_ground [protected, inherited]

the virtual ground node (below all roots) Definition at line 206 of file vgtl_dagbase.h.

int _DG_alloc_base< _Tp, _Ctr, _Iterator, _Alloc, _IsStatic >::_C_mark [protected, inherited]

internal counter for various algorithms Definition at line 210 of file vgtl_dagbase.h.

_DG_node<_Tp,_Ctr,_Iterator>* _DG_alloc_base< _Tp, _Ctr, _Iterator, _Alloc, _IsStatic >::_C_sky [protected, inherited]

the virtual sky node (above all leaves) Definition at line 208 of file vgtl_dagbase.h.

---

The documentation for this class was generated from the following file:

• vgtl_dagbase.h

---
