_DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator > Class Template Reference
[Classes and types for internal use]

recursive directed graph walkers More...

#include <vgtl_dag.h>

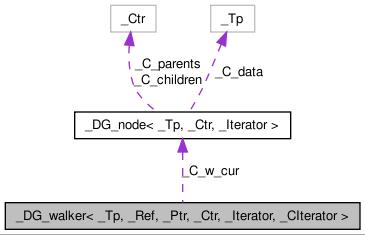

Collaboration diagram for _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >:

[legend]

List of all members.

Public Types
typedef _Tp	value_type
typedef _Ptr	pointer
typedef _Ref	reference
typedef _Ctr_iterator	children_iterator
typedef _Ctr_iterator	parents_iterator
typedef _Ctr_const_iterator	children_const_iterator
typedef _Ctr_const_iterator	parents_const_iterator
typedef _Node	node_type
typedef size_t	size_type
typedef ptrdiff_t	difference_type
Public Member Functions
	_DG_walker ()
	_DG_walker (_Node *__x)
	_DG_walker (const walker &__x)
reference	operator* () const
pointer	operator-> () const
const _Node *	node ()
size_type	n_children () const
size_type	n_parents () const
bool	is_root () const
bool	is_leaf () const
bool	is_ground () const
bool	is_sky () const
children_iterator	child_begin ()
children_iterator	child_end ()
parents_iterator	parent_begin ()
parents_iterator	parent_end ()
template<class _Function >
_Function	for_each_child (_Function __f)
template<class _Function >
_Function	for_each_parent (_Function __f)
_Self	operator<< (parents_iterator __i)
_Self	operator>> (children_iterator __i)
_Self &	operator<<= (parents_iterator __i)
_Self &	operator>>= (children_iterator __i)
_Self	operator<< (parents_const_iterator __i)
_Self	operator>> (children_const_iterator __i)
_Self &	operator<<= (parents_const_iterator __i)
_Self &	operator>>= (children_const_iterator __i)
_Self &	operator= (const _Itr &__x)
_Self &	operator= (const _Self &__x)
_Self &	operator= (const _Node &__n)
bool	operator== (const _Self &__x) const
bool	operator!= (const _Self &__x) const
Public Attributes
_Node *	_C_w_cur

---

Detailed Description

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator, class _CIterator>
class _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >

This is the class defining reursive directed graph walkers, which walk directed graphs under guidance.

Definition at line 62 of file vgtl_dag.h.

---

Member Typedef Documentation

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

typedef _Ctr_const_iterator _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::children_const_iterator

standard walker definition

Definition at line 91 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

typedef _Ctr_iterator _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::children_iterator

standard walker definition

Definition at line 89 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

typedef ptrdiff_t _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::difference_type

standard walker definition

Definition at line 96 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

typedef _Node _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::node_type

standard walker definition

Definition at line 93 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

typedef _Ctr_const_iterator _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::parents_const_iterator

standard walker definition

Definition at line 92 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

typedef _Ctr_iterator _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::parents_iterator

standard walker definition

Definition at line 90 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

typedef _Ptr _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::pointer

standard walker definition

Definition at line 77 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

typedef _Ref _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::reference

standard walker definition

Definition at line 78 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

typedef size_t _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::size_type

standard walker definition

Definition at line 95 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

typedef _Tp _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::value_type

standard walker definition

Definition at line 76 of file vgtl_dag.h.

---

Constructor & Destructor Documentation

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

_DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::_DG_walker

(

)

[inline]

standard constructor

Definition at line 105 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

_DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::_DG_walker

(

_Node *

__x

)

[inline]

constructor setting the position

Definition at line 109 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

_DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::_DG_walker

(

const walker &

__x

)

[inline]

copy constructor

Definition at line 112 of file vgtl_dag.h.

---

Member Function Documentation

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

children_iterator _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::child_begin

(

)

[inline]

return children_iterator to first child

Definition at line 158 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

children_iterator _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::child_end

(

)

[inline]

return children_iterator beyond last child

Definition at line 162 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

template<class _Function >

_Function _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::for_each_child

(

_Function

__f

)

[inline]

apply the function __f to all children

Definition at line 177 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

template<class _Function >

_Function _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::for_each_parent

(

_Function

__f

)

[inline]

apply the function __f to all parents

Definition at line 183 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

bool _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::is_ground

(

)

const [inline]

is this node a virtual node - the ground (below all roots)?

Definition at line 153 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

bool _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::is_leaf

(

)

const [inline]

is this node a leaf?

Definition at line 142 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

bool _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::is_root

(

)

const [inline]

is this node a root?

Definition at line 132 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

bool _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::is_sky

(

)

const [inline]

is this node a virtual node - the sky (above all leafs)?

Definition at line 155 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

size_type _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::n_children

(

)

const [inline]

return the number of children

Definition at line 127 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

size_type _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::n_parents

(

)

const [inline]

return the number of parents

Definition at line 129 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

const _Node* _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::node

(

)

[inline]

retrieve the full node

Definition at line 124 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

bool _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::operator!=

(

const _Self &

__x

)

const [inline]

comparison operator

Definition at line 193 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

reference _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::operator*

(

)

const [inline]

dereference operator

Definition at line 115 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

pointer _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::operator->

(

)

const [inline]

pointer operator

Definition at line 119 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

_Self _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::operator<<

(

parents_const_iterator

__i

)

[inline]

this function returns the walker pointing to the required parent

Definition at line 224 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

_Self _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::operator<<

(

parents_iterator

__i

)

[inline]

this function returns the walker pointing to the required parent

Definition at line 198 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

_Self& _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::operator<<=

(

parents_const_iterator

__i

)

[inline]

here the original walker goes to the required parent

Definition at line 238 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

_Self& _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::operator<<=

(

parents_iterator

__i

)

[inline]

here the original walker goes to the required parent

Definition at line 212 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

_Self& _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::operator=

(

const _Node &

__n

)

[inline]

a walker is assigned to any pointer to a graph node

Definition at line 262 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

_Self& _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::operator=

(

const _Self &

__x

)

[inline]

standard assignment operator

Definition at line 256 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

_Self& _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::operator=

(

const _Itr &

__x

)

[inline]

new walker is assigned from that particular iterator

Definition at line 250 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

bool _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::operator==

(

const _Self &

__x

)

const [inline]

comparison operator

Definition at line 191 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

_Self _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::operator>>

(

children_const_iterator

__i

)

[inline]

this function returns the walker pointing to the required child

Definition at line 231 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

_Self _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::operator>>

(

children_iterator

__i

)

[inline]

this function returns the walker pointing to the required child

Definition at line 205 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

_Self& _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::operator>>=

(

children_const_iterator

__i

)

[inline]

here the original walker goes to the required child

Definition at line 244 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

_Self& _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::operator>>=

(

children_iterator

__i

)

[inline]

here the original walker goes to the required child

Definition at line 218 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

parents_iterator _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::parent_begin

(

)

[inline]

return parents_iterator to first parent

Definition at line 167 of file vgtl_dag.h.

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

parents_iterator _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::parent_end

(

)

[inline]

return parents_iterator beyond last parent

Definition at line 171 of file vgtl_dag.h.

---

Member Data Documentation

template<class _Tp , class _Ref , class _Ptr , class _Ctr , class _Iterator , class _CIterator >

_Node* _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator, _CIterator >::_C_w_cur

pointer to the current node

Definition at line 101 of file vgtl_dag.h.

---

The documentation for this class was generated from the following file:

• vgtl_dag.h
