_Tree_node< _Tp, _Ctr, _Iterator > Class Template Reference
[Classes and types for internal use]

tree node for trees w/o data hooks More...

#include <vgtl_tree.h>

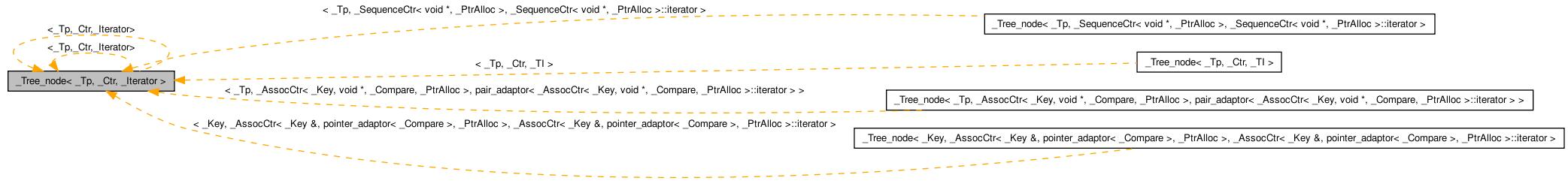

Inheritance diagram for _Tree_node< _Tp, _Ctr, _Iterator >:

[legend]

Collaboration diagram for _Tree_node< _Tp, _Ctr, _Iterator >:

[legend]

List of all members.

Public Member Functions
	_Tree_node ()
void	initialize ()
void	get_rid_of ()
void	clear_tree ()
void	clear_children ()
_Ctr_iterator	get_childentry_iterator (_Void_pointer __p)
template<class _Output_Iterator >
void	add_all_children (_Output_Iterator fi, _Self *_parent)
template<class Compare >
void	sort_children (_Ctr_iterator first, _Ctr_iterator last, Compare comp)
template<class Compare >
void	sort_parents (_Ctr_iterator first, _Ctr_iterator last, Compare comp)
Public Attributes
_Tp	_C_data
_Void_pointer	_C_parent
_Ctr	_C_children

---

Detailed Description

template<class _Tp, class _Ctr, class _Iterator>
class _Tree_node< _Tp, _Ctr, _Iterator >

This is the tree node for a tree without data hooks

Definition at line 64 of file vgtl_tree.h.

---

Constructor & Destructor Documentation

template<class _Tp, class _Ctr, class _Iterator>

_Tree_node< _Tp, _Ctr, _Iterator >::_Tree_node

(

)

[inline]

standard constructor

Definition at line 80 of file vgtl_tree.h.

---

Member Function Documentation

template<class _Tp, class _Ctr, class _Iterator>

template<class _Output_Iterator >

void _Tree_node< _Tp, _Ctr, _Iterator >::add_all_children	(	_Output_Iterator	fi,
		_Self *	_parent
	)			[inline]

add all children to parent _parent. fi is an iterator to the children container of _parent

template<class _Tp, class _Ctr, class _Iterator>

void _Tree_node< _Tp, _Ctr, _Iterator >::clear_children

(

)

[inline]

erase all children entries

Definition at line 101 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator>

void _Tree_node< _Tp, _Ctr, _Iterator >::clear_tree

(

)

remove the whole subtree below this node

template<class _Tp, class _Ctr, class _Iterator>

_Ctr_iterator _Tree_node< _Tp, _Ctr, _Iterator >::get_childentry_iterator

(

_Void_pointer

__p

)

[inline]

find the iterator into the children container for child __p

Definition at line 105 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator>

void _Tree_node< _Tp, _Ctr, _Iterator >::get_rid_of

(

)

[inline]

remove the children container

Reimplemented in _ITree_node< _Tp, _Ctr, _Iterator >.

Definition at line 94 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator>

void _Tree_node< _Tp, _Ctr, _Iterator >::initialize

(

)

[inline]

initialize the data structure

Reimplemented in _ITree_node< _Tp, _Ctr, _Iterator >.

Definition at line 88 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator>

template<class Compare >

void _Tree_node< _Tp, _Ctr, _Iterator >::sort_children	(	_Ctr_iterator	first,
		_Ctr_iterator	last,
		Compare	comp
	)			[inline]

sort the children according to comp

Definition at line 122 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator>

template<class Compare >

void _Tree_node< _Tp, _Ctr, _Iterator >::sort_parents	(	_Ctr_iterator	first,
		_Ctr_iterator	last,
		Compare	comp
	)			[inline]

sort the children according to comp, i.e. do nothing here

Definition at line 129 of file vgtl_tree.h.

---

Member Data Documentation

template<class _Tp, class _Ctr, class _Iterator>

_Ctr _Tree_node< _Tp, _Ctr, _Iterator >::_C_children

the edges to the children

Definition at line 77 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator>

_Tp _Tree_node< _Tp, _Ctr, _Iterator >::_C_data

the node data

Definition at line 73 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator>

_Void_pointer _Tree_node< _Tp, _Ctr, _Iterator >::_C_parent

the edge to the parent

Definition at line 75 of file vgtl_tree.h.

---

The documentation for this class was generated from the following file:

• vgtl_tree.h
