__ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc > Class Template Reference
[Classes and types for internal use]

Tree base class with data hooks. More...

#include <vgtl_tree.h>

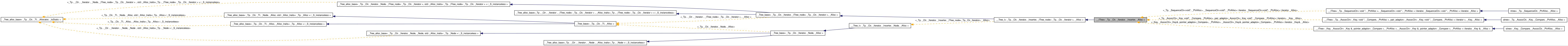

Inheritance diagram for __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >:

Inheritance graph
[legend]

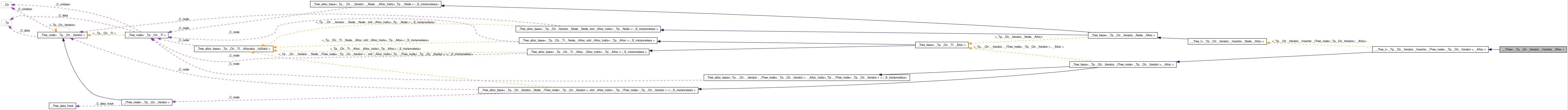

Collaboration diagram for __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >:

Collaboration graph
[legend]

List of all members.

Public Types

typedef _Node node_type
typedef _Tree_iterator< _Tp,
_Tp &, _Tp *, container_type,
children_iterator, node_type
iterator
typedef _Tree_iterator< _Tp,
const _Tp &, const _Tp
*, container_type,
children_iterator, node_type
const_iterator
typedef _Tree_walker< _Tp, _Tp
&, _Tp *, container_type,
children_iterator, _Node
iterative_walker
typedef _Tree_walker< _Tp,
const _Tp &, const _Tp
*, container_type,
children_iterator, _Node
const_iterative_walker
typedef std::reverse_iterator
< const_iterator
const_reverse_iterator
typedef std::reverse_iterator
< iterator
reverse_iterator
typedef _Iterator children_iterator
typedef __one_iterator< void * > parents_iterator
typedef _RTree_walker< _Tp,
_Tp &, _Tp *, container_type,
children_iterator, node_type
walker
typedef _RTree_walker< _Tp,
const _Tp &, const _Tp
*, container_type,
children_iterator, node_type
const_walker
typedef _Tp value_type
typedef value_typepointer
typedef const value_typeconst_pointer
typedef value_typereference
typedef const value_typeconst_reference
typedef size_t size_type
typedef ptrdiff_t difference_type

Public Member Functions

 __ITree (const allocator_type &__a=allocator_type())
iterative_walker root (walker_type wt=cw_pre_post, bool front_to_back=true, bool depth_first=true)
const_iterative_walker root (walker_type wt=cw_pre_post, bool front_to_back=true, bool depth_first=true) const
iterative_walker through ()
const_iterative_walker through () const
iterative_walker begin (walker_type wt=cw_pre_post, bool front_to_back=true, bool depth_first=true)
const_iterative_walker begin (walker_type wt=cw_pre_post, bool front_to_back=true, bool depth_first=true) const
iterative_walker end (walker_type wt=cw_pre_post, bool front_to_back=true, bool depth_first=true)
const_iterative_walker end (walker_type wt=cw_pre_post, bool front_to_back=true, bool depth_first=true) const
reverse_iterator rbegin ()
reverse_iterator rend ()
const_reverse_iterator rbegin () const
const_reverse_iterator rend () const
size_type size () const
reference getroot ()
const_reference getroot () const
size_type depth (const iterative_walker &__position)
 __ITree (size_type __n, const _Tp &__value, const allocator_type &__a=allocator_type())
 __ITree (size_type __n)
 __ITree (const _Self &__x)
virtual ~__ITree ()
_Selfoperator= (const _Self &__x)
_Selfoperator= (_Node *__x)
allocator_type get_allocator () const
bool empty () const
size_type max_size () const
void swap (_Self &__x)
void insert_child (const __walker_base &__position, const _Tp &__x, const container_insert_arg &__It)
void insert_child (const __walker_base &__position, const container_insert_arg &__It)
void insert_children (const __walker_base &__position, size_type __n, const _Tp &__x, const children_iterator &__It)
void insert_subtree (const __walker_base &__position, _Self &__subtree, const children_iterator &__It)
void erase (const __walker_base &__position)
_ITree_node< _Tp, _Ctr,
_Iterator > *
erase_tree (const __walker_base &__position)
bool erase_child (const __walker_base &__position, const children_iterator &__It)
_ITree_node< _Tp, _Ctr,
_Iterator > *
erase_subtree (const __walker_base &__position, const children_iterator &__It)
size_type depth (const walker &__position)
void clear ()
void clear_children ()
void add_all_children (_Output_Iterator fi, _Node *_parent)

Protected Member Functions

_ITree_node< _Tp, _Ctr,
_Iterator > *
_C_create_node (const _Tp &__x)
_ITree_node< _Tp, _Ctr,
_Iterator > *
_C_create_node ()
_Node_C_get_node ()
void _C_put_node (_Node *__p)
void _C_put_node (_Node *__p)

Protected Attributes

_Node_C_node

Friends

bool operator==__VGTL_NULL_TMPL_ARGS (const __ITree &__x, const __ITree &__y)


Detailed Description

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
class __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >

This is the base class for all trees with data hooks

Definition at line 2045 of file vgtl_tree.h.


Member Typedef Documentation

typedef _Iterator __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::children_iterator [inherited]

iterator for accessing the children

Reimplemented from _Tree_base< _Tp, _Ctr, _Iterator, _ITree_node< _Tp, _Ctr, _Iterator >, _Alloc >.

Definition at line 1563 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
typedef _Tree_walker<_Tp,const _Tp&,const _Tp*,container_type,children_iterator,_Node> __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::const_iterative_walker

the const iterative walker

Definition at line 2065 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
typedef _Tree_iterator<_Tp,const _Tp&,const _Tp*,container_type,children_iterator,node_type> __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::const_iterator

the const iterator

Reimplemented from __Tree_t< _Tp, _Ctr, _Iterator, _Inserter, _ITree_node< _Tp, _Ctr, _Iterator >, _Alloc >.

Definition at line 2060 of file vgtl_tree.h.

typedef const value_type* __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::const_pointer [inherited]

standard typedef

Definition at line 1578 of file vgtl_tree.h.

typedef const value_type& __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::const_reference [inherited]

standard typedef

Definition at line 1580 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
typedef std::reverse_iterator<const_iterator> __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::const_reverse_iterator

the const reverse iterator

Reimplemented from __Tree_t< _Tp, _Ctr, _Iterator, _Inserter, _ITree_node< _Tp, _Ctr, _Iterator >, _Alloc >.

Definition at line 2069 of file vgtl_tree.h.

typedef _RTree_walker<_Tp ,const _Tp &,const _Tp *,container_type,children_iterator,node_type> __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::const_walker [inherited]

the (recursive) const walker

Definition at line 1614 of file vgtl_tree.h.

typedef ptrdiff_t __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::difference_type [inherited]

standard typedef

Definition at line 1582 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
typedef _Tree_walker<_Tp,_Tp&,_Tp*,container_type,children_iterator,_Node> __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::iterative_walker

the iterative walker

Definition at line 2063 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
typedef _Tree_iterator<_Tp,_Tp&,_Tp*,container_type,children_iterator,node_type> __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::iterator

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
typedef _Node __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::node_type

standard typedef

Reimplemented from __Tree_t< _Tp, _Ctr, _Iterator, _Inserter, _ITree_node< _Tp, _Ctr, _Iterator >, _Alloc >.

Definition at line 2055 of file vgtl_tree.h.

typedef __one_iterator<void *> __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::parents_iterator [inherited]

iterator for accessing the parents

Reimplemented from _Tree_base< _Tp, _Ctr, _Iterator, _ITree_node< _Tp, _Ctr, _Iterator >, _Alloc >.

Definition at line 1564 of file vgtl_tree.h.

typedef value_type* __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::pointer [inherited]

standard typedef

Definition at line 1577 of file vgtl_tree.h.

typedef value_type& __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::reference [inherited]

standard typedef

Definition at line 1579 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
typedef std::reverse_iterator<iterator> __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::reverse_iterator

the reverse iterator

Reimplemented from __Tree_t< _Tp, _Ctr, _Iterator, _Inserter, _ITree_node< _Tp, _Ctr, _Iterator >, _Alloc >.

Definition at line 2071 of file vgtl_tree.h.

typedef size_t __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::size_type [inherited]

standard typedef

Definition at line 1581 of file vgtl_tree.h.

typedef _Tp __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::value_type [inherited]

standard typedef

Definition at line 1575 of file vgtl_tree.h.

typedef _RTree_walker<_Tp ,_Tp &,_Tp *,container_type,children_iterator,node_type> __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::walker [inherited]

the (recursive) walker

Definition at line 1612 of file vgtl_tree.h.


Constructor & Destructor Documentation

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
__ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::__ITree ( const allocator_type &  __a = allocator_type()  )  [inline, explicit]

standard constructor

Definition at line 2092 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
__ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::__ITree ( size_type  __n,
const _Tp &  __value,
const allocator_type &  __a = allocator_type()
) [inline]

construct a tree containing __n nodes with value __value at the root spot.

Definition at line 2184 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
__ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::__ITree ( size_type  __n  )  [inline, explicit]

construct a tree containing __n nodes with default value at the root spot.

Definition at line 2191 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
__ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::__ITree ( const _Self __x  )  [inline]

copy constructor

Definition at line 2196 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
virtual __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::~__ITree (  )  [inline, virtual]

standard destructor

Definition at line 2199 of file vgtl_tree.h.


Member Function Documentation

_ITree_node< _Tp, _Ctr, _Iterator > * __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::_C_create_node (  )  [inline, protected, inherited]

construct a new tree node containing default data

Definition at line 1641 of file vgtl_tree.h.

_ITree_node< _Tp, _Ctr, _Iterator > * __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::_C_create_node ( const _Tp &  __x  )  [inline, protected, inherited]

construct a new tree node containing data __x

Definition at line 1629 of file vgtl_tree.h.

_Node* _Tree_alloc_base< _Tp , _Ctr , _Iterator , _Node , _IsStatic >::_C_get_node (  )  [inline, protected, inherited]

allocate a new node

Definition at line 1375 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _TI, class _Allocator, bool _IsStatic>
void _Tree_alloc_base< _Tp, _Ctr, _TI, _Allocator, _IsStatic >::_C_put_node ( _Node *  __p  )  [inline, protected, inherited]

deallocate a node

Definition at line 1378 of file vgtl_tree.h.

void _Tree_alloc_base< _Tp , _Ctr , _Iterator , _Node , _IsStatic >::_C_put_node ( _Node *  __p  )  [inline, protected, inherited]

deallocate a node

Definition at line 1378 of file vgtl_tree.h.

void _Tree_base< _Tp , _Ctr , _Iterator , _ITree_node< _Tp, _Ctr, _Iterator > >::add_all_children ( _Output_Iterator  fi,
_Node *  _parent
) [inline, inherited]

add all children to the parent _parent. fi is a iterator to the children container of the parent

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
const_iterative_walker __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::begin ( walker_type  wt = cw_pre_post,
bool  front_to_back = true,
bool  depth_first = true
) const [inline]

the const walker to the first node of the complete walk

Definition at line 2129 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
iterative_walker __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::begin ( walker_type  wt = cw_pre_post,
bool  front_to_back = true,
bool  depth_first = true
) [inline]

the walker to the first node of the complete walk

Definition at line 2122 of file vgtl_tree.h.

void __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::clear (  )  [inline, inherited]

empty the tree

Reimplemented from _Tree_base< _Tp, _Ctr, _Iterator, _ITree_node< _Tp, _Ctr, _Iterator >, _Alloc >.

Definition at line 1817 of file vgtl_tree.h.

void _Tree_base< _Tp , _Ctr , _Iterator , _ITree_node< _Tp, _Ctr, _Iterator > >::clear_children (  )  [inline, inherited]

clear all children of the root node

Definition at line 1466 of file vgtl_tree.h.

size_type __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::depth ( const walker __position  )  [inline, inherited]

return the depth of node __position in the tree

Definition at line 1805 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
size_type __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::depth ( const iterative_walker __position  )  [inline]

return the depth of this __position in the tree

Definition at line 2177 of file vgtl_tree.h.

bool __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::empty (  )  const [inline, inherited]

is the tree empty?

Definition at line 1657 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
const_iterative_walker __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::end ( walker_type  wt = cw_pre_post,
bool  front_to_back = true,
bool  depth_first = true
) const [inline]

the const walker beyond the last node of the walk

Definition at line 2143 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
iterative_walker __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::end ( walker_type  wt = cw_pre_post,
bool  front_to_back = true,
bool  depth_first = true
) [inline]

the walker beyond the last node of the walk

Definition at line 2137 of file vgtl_tree.h.

void __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::erase ( const __walker_base __position  )  [inline, inherited]

erase the node at position __position.

Definition at line 1713 of file vgtl_tree.h.

bool __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::erase_child ( const __walker_base __position,
const children_iterator __It
) [inline, inherited]

erase the (leaf) child __It of node __position. This works if and only if the child is a leaf.

Definition at line 1770 of file vgtl_tree.h.

_ITree_node< _Tp, _Ctr, _Iterator > * __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::erase_subtree ( const __walker_base __position,
const children_iterator __It
) [inline, inherited]

erase the subtree position __position, whose top node is the child at children_iterator position __It, and return its top node.

Definition at line 1790 of file vgtl_tree.h.

_ITree_node< _Tp, _Ctr, _Iterator > * __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::erase_tree ( const __walker_base __position  )  [inline, inherited]

erase the subtree starting at position __position, and return its top node.

Definition at line 1743 of file vgtl_tree.h.

allocator_type __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::get_allocator (  )  const [inline, inherited]

construct an allocator object

Reimplemented from _Tree_alloc_base< _Tp, _Ctr, _TI, _Allocator, _IsStatic >.

Definition at line 1587 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
const_reference __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::getroot (  )  const [inline]

get a const reference to the virtual root node

Definition at line 2174 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
reference __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::getroot (  )  [inline]

get a reference to the virtual root node

Definition at line 2172 of file vgtl_tree.h.

void __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::insert_child ( const __walker_base __position,
const container_insert_arg &  __It
) [inline, inherited]

add a child below __position with default data, at the __It position in the __position - node's children container

Definition at line 1676 of file vgtl_tree.h.

void __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::insert_child ( const __walker_base __position,
const _Tp &  __x,
const container_insert_arg &  __It
) [inline, inherited]

add a child below __position with data __x, at the __It position in the __position - node's children container

Definition at line 1668 of file vgtl_tree.h.

void __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::insert_children ( const __walker_base __position,
size_type  __n,
const _Tp &  __x,
const children_iterator __It
) [inline, inherited]

add __n children below __position with data __x, after the __It position in the __position - node's children container

Definition at line 1682 of file vgtl_tree.h.

void __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::insert_subtree ( const __walker_base __position,
_Self __subtree,
const children_iterator __It
) [inline, inherited]

add a complete subtree __subtree below position __position and children iterator position __It.

Definition at line 1702 of file vgtl_tree.h.

size_type __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::max_size (  )  const [inline, inherited]

return the maximum possible size of the tree (theor. infinity)

Definition at line 1660 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
_Self& __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::operator= ( _Node __x  )  [inline]

assign a tree from one node -> make this node the root node. This is useful for making trees out of erased subtrees.

Definition at line 2208 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
_Self& __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::operator= ( const _Self __x  )

standard assignment operator

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
const_reverse_iterator __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::rbegin (  )  const [inline]

return a const reverse iterator to the first node in walk

Definition at line 2158 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
reverse_iterator __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::rbegin (  )  [inline]

return a reverse iterator to the first node in walk

Definition at line 2151 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
const_reverse_iterator __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::rend (  )  const [inline]

return a const reverse iterator beyond the last node in walk

Definition at line 2161 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
reverse_iterator __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::rend (  )  [inline]

return a reverse iterator beyond the last node in walk

Definition at line 2154 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
const_iterative_walker __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::root ( walker_type  wt = cw_pre_post,
bool  front_to_back = true,
bool  depth_first = true
) const [inline]

return a const iterative walker of type wt to the ground node

Definition at line 2106 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
iterative_walker __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::root ( walker_type  wt = cw_pre_post,
bool  front_to_back = true,
bool  depth_first = true
) [inline]

return an iterative walker of type wt to the ground node

Definition at line 2099 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
size_type __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::size (  )  const [inline]

return the size of the tree (# of nodes)

Definition at line 2165 of file vgtl_tree.h.

void __Tree_t< _Tp , _Ctr , _Iterator , _Inserter , _ITree_node< _Tp, _Ctr, _Iterator > , _Alloc >::swap ( _Self __x  )  [inline, inherited]

swap two trees

Definition at line 1663 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
const_iterative_walker __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::through (  )  const [inline]

the const walker beyond the complete walk

Definition at line 2117 of file vgtl_tree.h.

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
iterative_walker __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc >::through (  )  [inline]

the walker beyond the complete walk

Definition at line 2113 of file vgtl_tree.h.


Friends And Related Function Documentation

template<class _Tp, class _Ctr, class _Iterator, class _Inserter, class _Alloc>
bool operator==__VGTL_NULL_TMPL_ARGS ( const __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc > &  __x,
const __ITree< _Tp, _Ctr, _Iterator, _Inserter, _Alloc > &  __y
) [friend]

comparison operator


Member Data Documentation

_Node* _Tree_alloc_base< _Tp , _Ctr , _Iterator , _Node , _IsStatic >::_C_node [protected, inherited]

This is the node

Definition at line 1387 of file vgtl_tree.h.


The documentation for this class was generated from the following file:

Generated on Tue Feb 9 14:42:17 2010 for Vienna Graph Template Library by  doxygen 1.5.8
