_DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator > Class Template Reference
[Classes and types for internal use]

recursive directed graph walkers More...

#include <vgtl_dag.h>

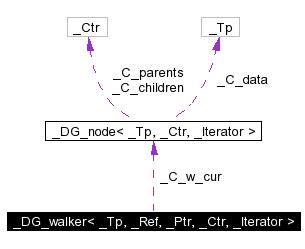

Collaboration diagram for _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >:

[legend]List of all members.

Public Types
typedef _Tp	value_type
typedef _Ptr	pointer
typedef _Ref	reference
typedef _Ctr_iterator	children_iterator
typedef _Ctr_iterator	parents_iterator
typedef _Node	node_type
typedef size_t	size_type
typedef ptrdiff_t	difference_type
Public Methods
	_DG_walker ()
	_DG_walker (_Node *__x)
	_DG_walker (const walker &__x)
reference	operator * () const
pointer	operator-> () const
const _Node *	node ()
size_type	n_children () const
size_type	n_parents () const
bool	is_root () const
bool	is_leaf () const
bool	is_ground () const
bool	is_sky () const
children_iterator	child_begin ()
children_iterator	child_end ()
parents_iterator	parent_begin ()
parents_iterator	parent_end ()
template<class _Function> _Function	for_each_child (_Function __f)
template<class _Function> _Function	for_each_parent (_Function __f)
_Self	operator<< (parents_iterator __i)
_Self	operator>> (children_iterator __i)
_Self &	operator<<= (parents_iterator __i)
_Self &	operator>>= (children_iterator __i)
_Self &	operator= (const _Itr &__x)
_Self &	operator= (const _Self &__x)
_Self &	operator= (const _Node &__n)
bool	operator== (const _Self &__x) const
bool	operator!= (const _Self &__x) const
Public Attributes
_Node *	_C_w_cur

---

Detailed Description

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator>
class _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >

This is the class defining reursive directed graph walkers, which walk directed graphs under guidance.

Definition at line 59 of file vgtl_dag.h.

---

Member Typedef Documentation

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> typedef _Ctr_iterator _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::children_iterator

standard walker definition Definition at line 84 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> typedef ptrdiff_t _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::difference_type

standard walker definition Definition at line 89 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> typedef _Node _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::node_type

standard walker definition Definition at line 86 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> typedef _Ctr_iterator _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::parents_iterator

standard walker definition Definition at line 85 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> typedef _Ptr _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::pointer

standard walker definition Definition at line 73 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> typedef _Ref _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::reference

standard walker definition Definition at line 74 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> typedef size_t _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::size_type

standard walker definition Definition at line 88 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> typedef _Tp _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::value_type

standard walker definition Definition at line 72 of file vgtl_dag.h.

---

Constructor & Destructor Documentation

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::_DG_walker (    )  [inline]

standard constructor Definition at line 98 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::_DG_walker (  _Node *    __x )  [inline]

constructor setting the position Definition at line 102 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::_DG_walker (  const walker &    __x )  [inline]

copy constructor Definition at line 105 of file vgtl_dag.h.

---

Member Function Documentation

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> children_iterator _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::child_begin (    )  [inline]

return children_iterator to first child Definition at line 151 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> children_iterator _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::child_end (    )  [inline]

return children_iterator beyond last child Definition at line 153 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> template<class _Function> _Function _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::for_each_child (  _Function    __f )  [inline]

apply the function __f to all children Definition at line 162 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> template<class _Function> _Function _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::for_each_parent (  _Function    __f )  [inline]

apply the function __f to all parents Definition at line 168 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> bool _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::is_ground (    )  const [inline]

is this node a virtual node - the ground (below all roots)? Definition at line 146 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> bool _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::is_leaf (    )  const [inline]

is this node a leaf? Definition at line 135 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> bool _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::is_root (    )  const [inline]

is this node a root? Definition at line 125 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> bool _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::is_sky (    )  const [inline]

is this node a virtual node - the sky (above all leafs)? Definition at line 148 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> size_type _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::n_children (    )  const [inline]

return the number of children Definition at line 120 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> size_type _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::n_parents (    )  const [inline]

return the number of parents Definition at line 122 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> const _Node* _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::node (    )  [inline]

retrieve the full node Definition at line 117 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> reference _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::operator * (    )  const [inline]

dereference operator Definition at line 108 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> bool _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::operator!= (  const _Self &    __x )  const [inline]

comparison operator Definition at line 178 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> pointer _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::operator-> (    )  const [inline]

pointer operator Definition at line 112 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> _Self _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::operator<< (  parents_iterator    __i )  [inline]

this function returns the walker pointing to the required parent Definition at line 183 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> _Self& _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::operator<<= (  parents_iterator    __i )  [inline]

here the original walker goes to the required parent Definition at line 197 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> _Self& _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::operator= (  const _Node &    __n )  [inline]

a walker is assigned to any pointer to a graph node Definition at line 221 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> _Self& _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::operator= (  const _Self &    __x )  [inline]

standard assignment operator Definition at line 215 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> _Self& _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::operator= (  const _Itr &    __x )  [inline]

new walker is assigned from that particular iterator Definition at line 209 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> bool _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::operator== (  const _Self &    __x )  const [inline]

comparison operator Definition at line 176 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> _Self _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::operator>> (  children_iterator    __i )  [inline]

this functions returns the walker pointing to the required child Definition at line 190 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> _Self& _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::operator>>= (  children_iterator    __i )  [inline]

here the original walker goes to the required child Definition at line 203 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> parents_iterator _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::parent_begin (    )  [inline]

return parents_iterator to first parent Definition at line 156 of file vgtl_dag.h.

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> parents_iterator _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::parent_end (    )  [inline]

return parents_iterator beyond last parent Definition at line 158 of file vgtl_dag.h.

---

Member Data Documentation

template<class _Tp, class _Ref, class _Ptr, class _Ctr, class _Iterator> _Node* _DG_walker< _Tp, _Ref, _Ptr, _Ctr, _Iterator >::_C_w_cur

pointer to the current node Definition at line 94 of file vgtl_dag.h.

---

The documentation for this class was generated from the following file:

• vgtl_dag.h

---
