_VDBL_view Class Reference
[Classes and types for internal use]

base class of all views. More...

#include <vdbl_view.h>

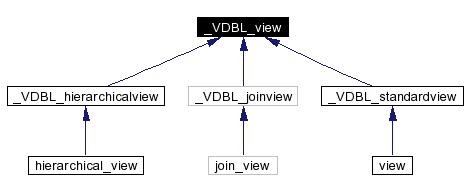

Inheritance diagram for _VDBL_view:

[legend]Collaboration diagram for _VDBL_view:

[legend]List of all members.

Public Types
typedef std::pair< std::string, _VDBL_col >	_T_colspec
Public Methods
	_VDBL_view (_V_enum __e=V_independent)
	_VDBL_view (const _VDBL_view &__v)
virtual	~_VDBL_view ()
virtual const std::type_info &	get_colinfo (const std::string &_C_n, triple< bool, _VDBL_colid, _VDBL_colflags > &_r) const VDBL_PURE_VIRTUAL virtual bool insert(const std
Protected Types
typedef _default_iterator< _VDBL_col, const _VDBL_col &, const _VDBL_col * >	default_const_iterator
typedef _col_iterator< _VDBL_col, const _VDBL_col &, const _VDBL_col * >	col_const_iterator
typedef _row_iterator< _VDBL_row, const _VDBL_row &, const _VDBL_row * >	row_const_iterator
Protected Methods
void	made_change ()
	increment the change counter.
unsigned int	get_change_ctr () const
	read the change counter
virtual triple< _VDBL_tableid, _VDBL_colid, void * >	_next_def_col (const _VDBL_tableid &_t, const _VDBL_colid &_c, void *_d) const VDBL_PURE_VIRTUAL virtual triple< _VDBL_tableid
virtual triple< _VDBL_tableid, _VDBL_colid, void * > void *	_prev_def_col (const _VDBL_tableid &_t, const _VDBL_colid &_c, void *_d) const VDBL_PURE_VIRTUAL virtual void _destroy_def_data(void *&_d) const
virtual void *	_copy_def_data (void *_d) const VDBL_PURE_VIRTUAL virtual triple< _VDBL_tableid
virtual void void *	_next_col (const _VDBL_tableid &_t, const _VDBL_rowid &_r, const _VDBL_colid &_c, void *_d) const VDBL_PURE_VIRTUAL virtual triple< _VDBL_tableid
virtual void void void *	_prev_col (const _VDBL_tableid &_t, const _VDBL_rowid &_r, const _VDBL_colid &_c, void *_d) const VDBL_PURE_VIRTUAL virtual void _destroy_col_data(void *&_d) const
virtual void *	_copy_col_data (void *_d) const VDBL_PURE_VIRTUAL virtual triple< _VDBL_tableid
virtual void void *	_next_row (const _VDBL_tableid &_t, const _VDBL_rowid &_c, void *_d) const VDBL_PURE_VIRTUAL virtual triple< _VDBL_tableid
virtual void void void *	_prev_row (const _VDBL_tableid &_t, const _VDBL_rowid &_c, void *_d) const VDBL_PURE_VIRTUAL virtual void _destroy_row_data(void *&_d) const
virtual void *	_copy_row_data (void *_d) const VDBL_PURE_VIRTUAL public

---

Detailed Description

This is the base class of all views. A view in the database must be a subclass of this class.

Definition at line 78 of file vdbl_view.h.

---

Member Typedef Documentation

typedef std::pair<std::string,_VDBL_col> _VDBL_view::_T_colspec

This is the description of one column Definition at line 84 of file vdbl_view.h.

typedef _col_iterator<_VDBL_col, const _VDBL_col&, const _VDBL_col*> _VDBL_view::col_const_iterator [protected]

const iterator over all columns Definition at line 461 of file vdbl_view.h.

typedef _default_iterator<_VDBL_col, const _VDBL_col&, const _VDBL_col*> _VDBL_view::default_const_iterator [protected]

const iterator over all default columns Definition at line 324 of file vdbl_view.h.

typedef _row_iterator<_VDBL_row, const _VDBL_row&, const _VDBL_row*> _VDBL_view::row_const_iterator [protected]

const iterator over all rows Definition at line 590 of file vdbl_view.h.

---

Constructor & Destructor Documentation

_VDBL_view::_VDBL_view (  _V_enum    __e = V_independent )  [inline]

standard constructor which optionally initializes the view type Definition at line 596 of file vdbl_view.h.

_VDBL_view::_VDBL_view (  const _VDBL_view &    __v )  [inline]

copy constructor Definition at line 600 of file vdbl_view.h.

virtual _VDBL_view::~_VDBL_view (    )  [inline, virtual]

standard destructor Definition at line 604 of file vdbl_view.h.

---

Member Function Documentation

virtual void* _VDBL_view::_copy_col_data (  void *    _d )  const [protected, virtual]

This virtual function has to be overloaded by the derived view classes, and it performs the step to the next row for a _row_iterator. Reimplemented in _VDBL_hierarchicalview, and _VDBL_standardview.

virtual void* _VDBL_view::_copy_def_data (  void *    _d )  const [protected, virtual]

This virtual function has to be overloaded by the derived view classes, and it performs the step to the next column for a _col_iterator. Reimplemented in _VDBL_hierarchicalview, and _VDBL_standardview.

virtual void* _VDBL_view::_copy_row_data (  void *    _d )  const [inline, protected, virtual]

This is the fundamental class for iterators over all default columns, defining basic in(de)crementation for overloading, and basic comparison. Reimplemented in _VDBL_hierarchicalview, and _VDBL_standardview. Definition at line 193 of file vdbl_view.h.

virtual void void* _VDBL_view::_next_col (  const _VDBL_tableid &    _t, const _VDBL_rowid &    _r, const _VDBL_colid &    _c, void *    _d )  const [protected]

This virtual function has to be overloaded by the derived view classes, and it performs the step to the previous column for a _col_iterator. Reimplemented in _VDBL_hierarchicalview, and _VDBL_standardview.

virtual triple<_VDBL_tableid,_VDBL_colid,void*> _VDBL_view::_next_def_col (  const _VDBL_tableid &    _t, const _VDBL_colid &    _c, void *    _d )  const [protected, virtual]

This virtual function has to be overloaded by the derived view classes, and it performs the step to the previous default of a column a _default_iterator. Reimplemented in _VDBL_hierarchicalview, and _VDBL_standardview.

virtual void void* _VDBL_view::_next_row (  const _VDBL_tableid &    _t, const _VDBL_rowid &    _c, void *    _d )  const [protected]

This virtual function has to be overloaded by the derived view classes, and it performs the step to the previous row for a _row_iterator. Reimplemented in _VDBL_hierarchicalview, and _VDBL_standardview.

virtual void void void* _VDBL_view::_prev_col (  const _VDBL_tableid &    _t, const _VDBL_rowid &    _r, const _VDBL_colid &    _c, void *    _d )  const [inline, protected]

This function destroys the additional data needed by a _col_iterator Reimplemented in _VDBL_hierarchicalview, and _VDBL_standardview. Definition at line 147 of file vdbl_view.h.

virtual triple<_VDBL_tableid,_VDBL_colid,void*> void* _VDBL_view::_prev_def_col (  const _VDBL_tableid &    _t, const _VDBL_colid &    _c, void *    _d )  const [inline, protected]

This function destroys the additional data needed by a _default_iterator Reimplemented in _VDBL_hierarchicalview, and _VDBL_standardview. Definition at line 115 of file vdbl_view.h.

virtual void void void* _VDBL_view::_prev_row (  const _VDBL_tableid &    _t, const _VDBL_rowid &    _c, void *    _d )  const [inline, protected]

This function destroys the additional data needed by a _row_iterator Reimplemented in _VDBL_hierarchicalview, and _VDBL_standardview. Definition at line 179 of file vdbl_view.h.

virtual const std::type_info& _VDBL_view::get_colinfo (  const std::string &    _C_n, triple< bool, _VDBL_colid, _VDBL_colflags > &    _r )  const [inline, virtual]

return the type of this view Reimplemented in _VDBL_hierarchicalview, and _VDBL_standardview. Definition at line 613 of file vdbl_view.h.

---

The documentation for this class was generated from the following file:

• vdbl_view.h

---
